for monitoring, checking and repairing delicate micro workpieces

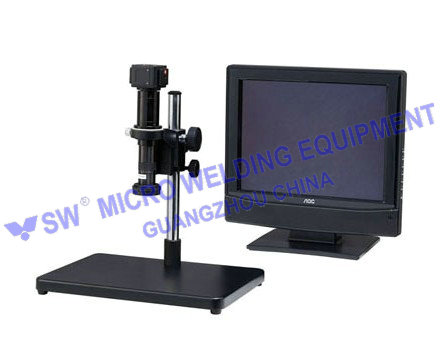

  CCD Digital Microscope Detector



· Continuous zoom monocular microscope

· HD color monitor suitable for computers, TVs and other video signals

· Directly and continuously store images in the computer

· Designed for monitoring, checking and repairing delicate micro workpieces



Monitor
TV Standard	PAL B/G, D/K, I, NTSC M; FM-MONO Audio System
Input Power	AC100V~240V, 50/60Hz
Power Consumed	≦55 W
Size	376 x 374 x 180 (mm) (including the stand)
Net Weight	3.42 kg
Monocular Microscope
Main	0.325 – 2.25X
Eyepiece	0.35X, 0.5X, 0.75X, 1X
Microscope Stand
Focus Adjusted by Hand-wheel	60 mm
Height Adjustment	110 mm
CCD
Type	73X11P
Color System	PAL
Resolution	625 lines
Input Power	DC12V/110mA



* All descriptions are subject to the actual product. Please contact us for any updates.
